BCE Place: Heritage Square and Galleria

Toronto, Ontario

Santiago Calatrava Architect

Fabrication

The information pertaining to the fabrication process has been taken from the notes of a presentation made by Wayne Baigent of Canron Inc. to the Steel Structures Education Foundation Architectural Educators Meeting in November 1993. Photo credit belongs to Wayne Baigent for all fabrication and construction images.

In planning for the fabrication it was realized that there would be constraints on the geometry and weight of the pieces. Simply stated, this affected:
1. Handling, this included turning in the shop and egress from the plant.
2. The shipping through the city streets that have both height and width limitations.
3. The access and types of equipment possible on a congested urban site.
4. Constraints imposed by the General Contractor due to problems related to the orchestration of the project.

The fabricator viewed the steel as a working piece of sculpture. It was recognized that people would be examining and touching the sturcture more closely than normal.

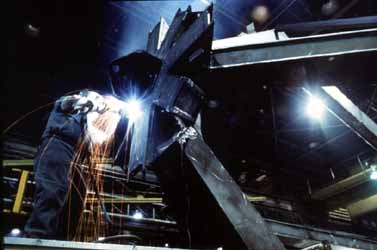

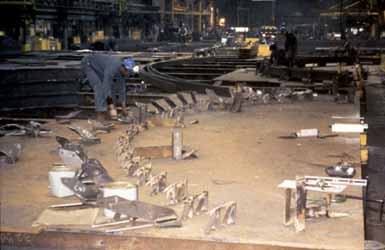

The majority of the joints in the structure are welded. The amount of shop welding was maximized. The pieces were as large as could be handled under tightly controlled shop conditions.

Since the structure was to be painted, the edges would be important. If too sharp, they would tend to sustain wear and damage. For this reason, hot rolled edges were used wherever possible. And for this reason, they chose to use angles and hollow structural steel sections, and if square or rectangular sections were required to be built up from plates, to consider recessing two of the plates to create fillet welds that would require grinding.

Although the structure appears to be light and airy, it is in fact quite rigid. The excessive triangulation means that extreme care must be taken to maintain tight tolerances. Members that do not fit will not be able to be coaxed into place.

The geometry was critical and the computer proved a helpful tool for ascertaining geometry and checks.

Oversized holes and slotted holes that can sometimes be used in bolted connections could not be used. Although they can be good for expansion problems or connections to existing steel, they are counterproductive to an erector. Holes and their spacing must be as exact as possible as this is what sets the structure into its exact position.

In order to prepare the shop drawings for the structure, the following questions were asked:

1. Look for common elements
2. Look for straight elements -- e.g. boxes or Tees
3. Can they make the box sections to Tees from flats or universal rolled plates to avoid grinding edges?
4. Can they make box sections with two sides recessed?
5. Can the roof elements be made from HSS?

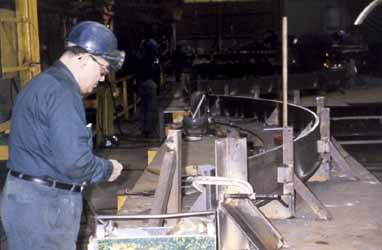

6. Straight line welding is possible if boxes are built up straight and then rolled.
7. Are the plates thick enough not to buckle when being welded or rolled?
8. Are there not connections that could be standardized?
9. Where are the best splice locations for the field?

As each department looked more deeply into their areas, the people in the Engineering, Drafting, Plant and Erections departments of Canron made models so that they fully understood what was being built.
