The Carbon Neutral Design Project:
Carbon Neutral Teaching: Curriculum Materials Development
Robert Peña
University of Washington

Winter 2008 Graduate Studio/ Summer 2008 Integrated Design Lab research for the Living Building Investigation

Site Produced Energy:
Integration of systems for energy supply

Site Resources

Design Performance Objective

Site Resources

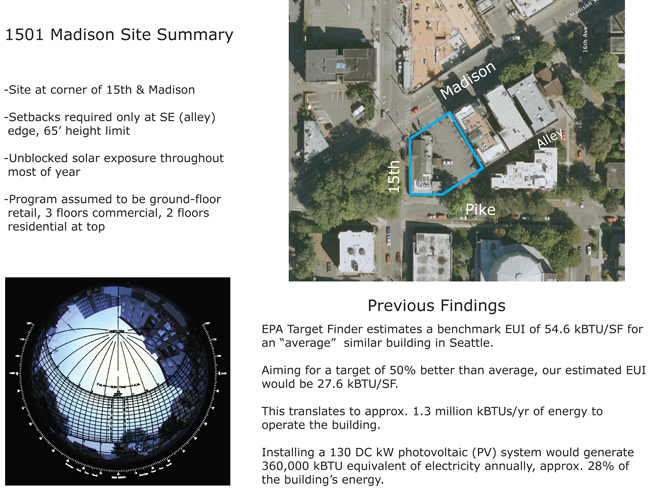

Site Resources: summary of site energy availability versus estimated energy use
(Bullitt Foundation design study).

Student: xxx

Software/Tools:

Winter 2008 Graduate Studio/ Summer 2008 Integrated Design Lab research for the Living Building Investigation

Site Produced Energy:
Integration of systems for energy supply

Topics
• Solar Thermal
-integration of panel and evacuated tube collectors
-predicting energy for heating and/or domestic hot water
• Photovoltaics: Crystalline and Thin Film
-roof: racks, roof integrated
-walls: sun shades, envelope integrated

Design/Performance Objective
To integrate PV and solar thermal systems into the form and fabric of the building.

Investigative Strategy

Use site shading masks to determine solar access, and PV Watts to estimate the electricity generation potential of integrated PVs.

Evaluation Process
Present evidence documenting the design and predicted performance of active systems for mechanical control.
Information about the Project and Studio

• course outline

• project outline

Evaluative Criteria
Cautions
Range of Applicability in terms of CLIMATE
ALL
Range of Applicability in terms of TYPE
ALL
Reference Material
Duration of Exercise
Degree of Difficulty / Previous Knowledge Required


PV Estimate

PV Estimates

Student Name

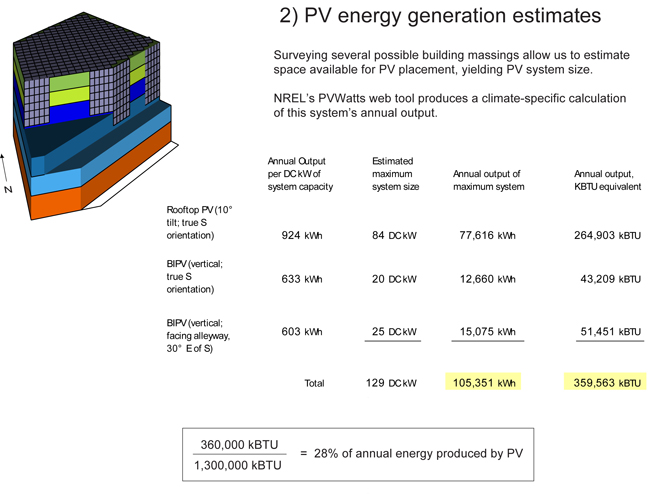

PV Estimates: on-site solar electric estimates
(Bullitt Foundation design study).
